5/32" Olympic Rivets (4oz - Approx. 100)

Type: New
Price: $25.79
In Stock (eStore Only)


Use arrows to see more images





Click an image to view a larger image

Description

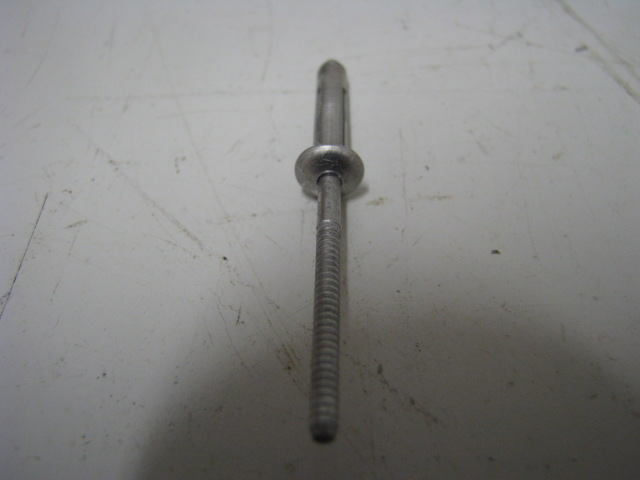

4oz has approx. 100 rivets. The Shaveable series of Bulb-tite rivets are designed for use in applications where solid "bucked" type rivets are commonly used such as Airstream, Avion, Spartan, Silver Streak body repair. The Shaveable Bulb-tite simplifies repairs made to solid riveted assemblies, as rivet replacement does not require access to the blind side of the application. The Bulb-tites large blindside footprint functions well in rivet holes that have become elongated or too large to allow use of a solid rivet. Simply install the Bulb-tite and finish the rivet head with an Olympic head-shaving tool. The shaved head profile perfectly matches the solid brazier head rivets used elsewhere in the assembly. Shaveable Bulb-tites can be installed with most standard blind rivet tools. The installed rivets mandrel is designed to break high, leaving an exposed mandrel plug extending above the set fasteners head. The remaining mandrel protrusion is snipped off using side cuts. Finally, the rivet head is shaved using the HS310 shaver, leaving a finished rivet head that matches solid rivets in appearance.

Olympic rivet diameter is 5/32" with grip range of .020-.312 and use drill bit size #20. A regular pop rivet gun can be used to install these rivets. Our part# is COT004.


Details

Part Number: CHW059
