Spartan (Marvel) Rear Window Frame

Type: New
Price: $124.61
Currently Out of Stock
Use arrows to see more images





Click an image to view a larger image

Description

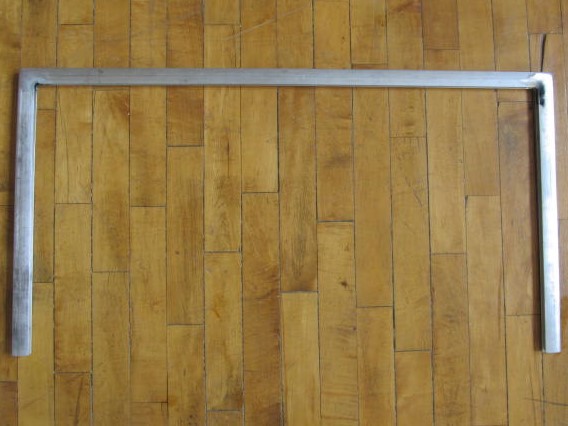

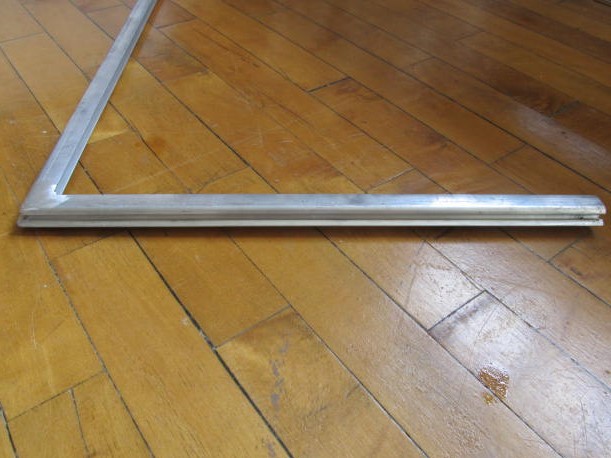

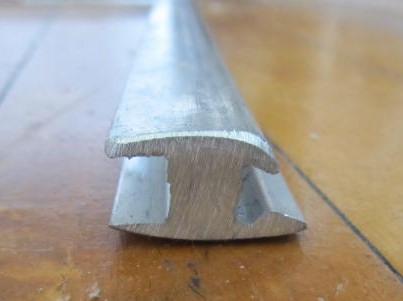

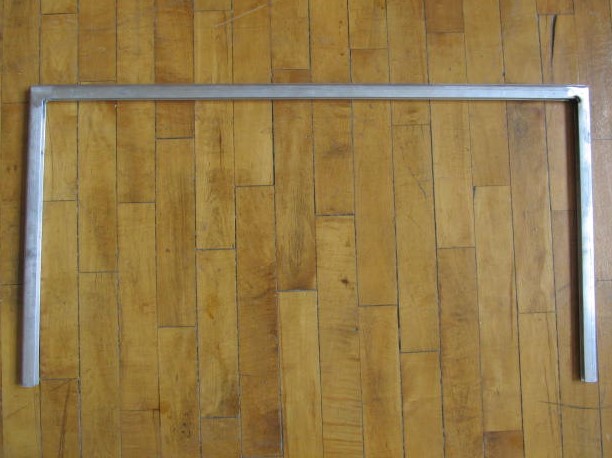

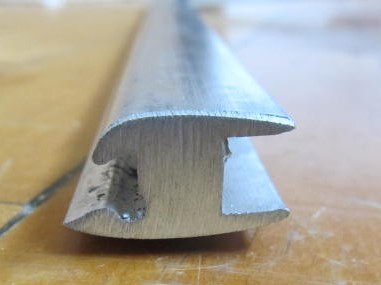

This is a 3 sided aluminum window frame which will fit most 1947-1953 Spartan trailers.  NOTE -  It does not have the top extrusion which slides into the hinge on the trailer.  You will need to have that extrusion from your old window for this to work.  The original Marvel windows which were made of steel are famous for rusting out on the bottom.  Typically, the top extrusion of the window is still in usable shape.  This 3 sided window frame was reproduced from the original Marvel brand window.  This window frame does not come with the glass, or any of the seals but we do have the seals available on our parts e-store. You will need 8 foot of our part# CHW015 glazing, which is for 3/16 inch to 7/32 inch thick glass which can be purchased at your local glass shop.  The glass will need to have the 2 bottom corners rounded a little so that it will fit properly in the new aluminum frame.  You will need 6 foot of our part# CHW092 outer seal, then we always add up to 9 foot of our part# CHW017 on the inner window jamb. Adding this seal will help prevent the window leaks that are very common on these rear windows.  You will need to drill 4 holes (2 on each side) for mounting this 3 sided aluminum frame to your original top window extrusion.  Note, the display photo shows the entire window with glass & seals installed on a 1951 Spartan Imperial Mansion.


Details

Application: Fits Most 1947-1953 Spartans

Condition: New

Height: 17-1/4 inch

Width: 33 inch

Depth: 9/16 inch

Part Number: CBP051
