Description

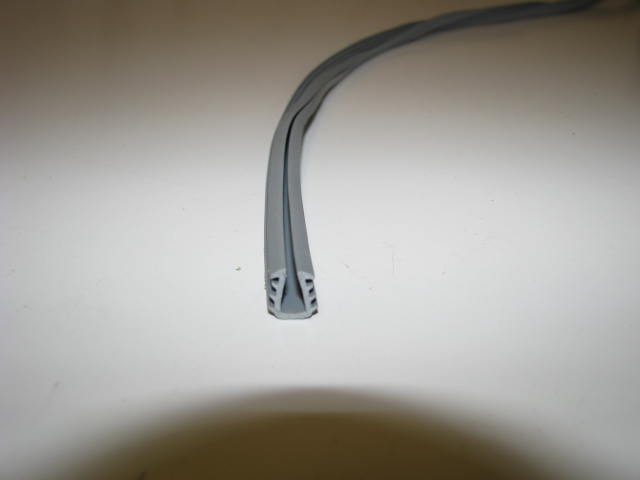

This gray vinyl glazing has a 11/32" channel depth and is for a metal opening of 9/32" and for 3/16" & 7/32" glass.

This gray vinyl glazing can be used on 1946-1953 Spartans which use a  Marvel brand rear window.  It will be a 17-3/4"h x 33"w square cornered window made from steel or aluminum.  It will not work on radius cornered rear windows but there only only a few of these on early Manors, I believe.

This can also be used on 1955-1958 Spartans which have the 3/16" thick plexiglass windows with the 2 aluminum dividers between the center and side front windows.  This glazing goes in the aluminum channels that separate the center and front side windows.  It is totally different from the original seals but does a fine job.  The original seal was black but this gray seal looks fine with the aluminum channel it goes in. You will need 10' of this glazing for the aluminum channels.

This glazing is sold by the foot.  The rear Marvel brand window needs approx.  8' and the aluminum channels need approx. 10'.

Details

Application: Used on a couple of different application on Spartan windows - See description.

Part Number: CHW015
